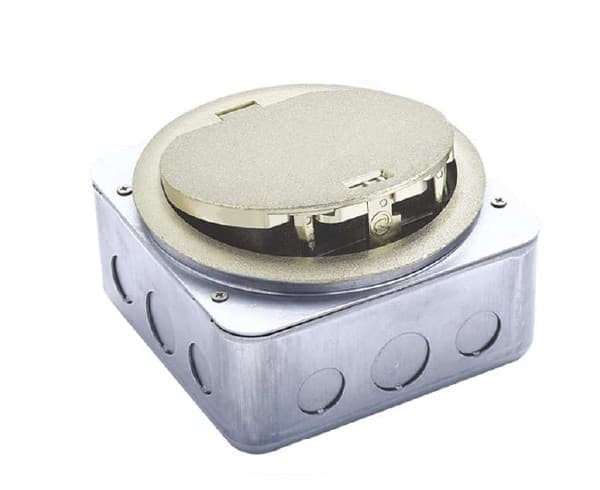

Silver
GH-SOB-5ZNC
Green Home floor boxes
IP65
Compact luxury round IP65 waterproof floor box
A compact three-module power and data point, available in silver, old brass, red copper and gold finishes.
Request datasheet
Available finishes
Choose the finish for the project.
The same three-module floor box is available in four decorative zinc-alloy finishes.

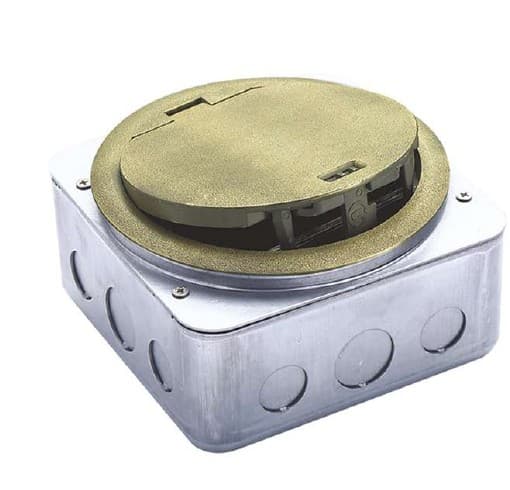

Old brass
GH-SOB-5ZBC

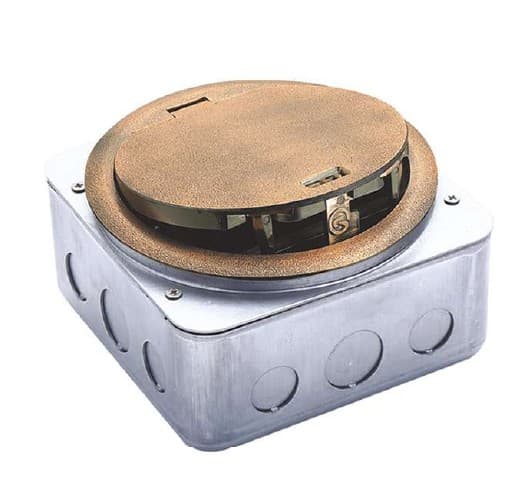

Red copper
GH-SOB-5ZCC

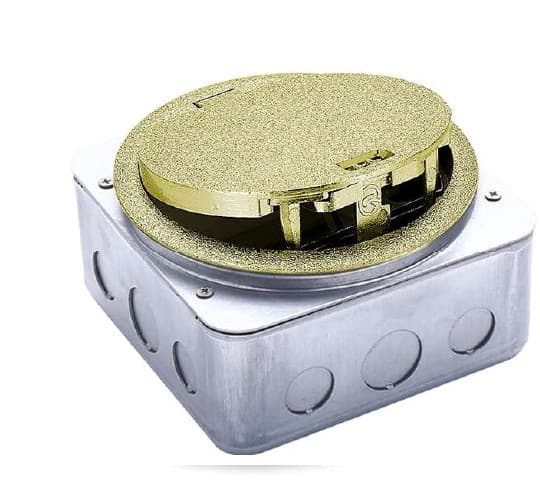

Gold
GH-SOB-5ZGC
Project applications
Designed for practical floor access.
- Luxury residences
- Hotel rooms
- Water-exposed floors
- Raised and concrete floors
Technical specification
- Protection
- IP65 in closed status
- Module capacity
- 3 Type-45 modules
- Panel / cut-out
- Ø110 mm / Ø100 mm
- Material
- Zinc alloy panel
- Finishes
- Silver, old brass, red copper and gold
- Mechanism
- Slide push button
Configuration and finishes
The details that affect selection.
SilverOld brassRed copperGold
Compact three-module layout
This smaller round format accepts three Type-45 modules. A typical arrangement is one UK 13A power socket with one Cat6 data point; final modules are selected for the project.
Same decorative family
The compact model uses the same decorative zinc-alloy finish family as the larger six-module version: silver (GH-SOB-5ZNC), old brass (GH-SOB-5ZBC), red copper (GH-SOB-5ZCC) and gold (GH-SOB-5ZGC).
Size difference
The compact panel is Ø110 mm with a Ø100 mm cut-out. The six-module version is larger at Ø150 mm with a Ø130 mm cut-out.
Protection and warranty
The IP65 protection rating applies in closed status. The supplied datasheet states a three-year warranty against manufacturing defects.
Questions and answers
Product details, clearly answered.
How is it different from the six-module version?
It has a smaller panel and accepts three Type-45 modules.
Can it combine power and data?
A typical configuration combines a UK power socket and a Cat6 data point; final selection is project-specific.
Which finishes are offered?
The decorative finish options are silver, old brass, red copper and gold.
