Brushed nickel
SOP-12ZNA / SOP-12ZNC
Green Home floor boxes
Dual covers · 4 Type-45 modules
GH-SOP-12 dual flip-up mini floor socket
A dual-cover Type-45 flip-up floor socket with four module positions for coordinated power and data access in finished floors.
Request datasheet
Available finishes
Two covers, one coordinated finish.
The SOP-12 dual floor socket is supplied in decorative finish options for coordinated floor installations.

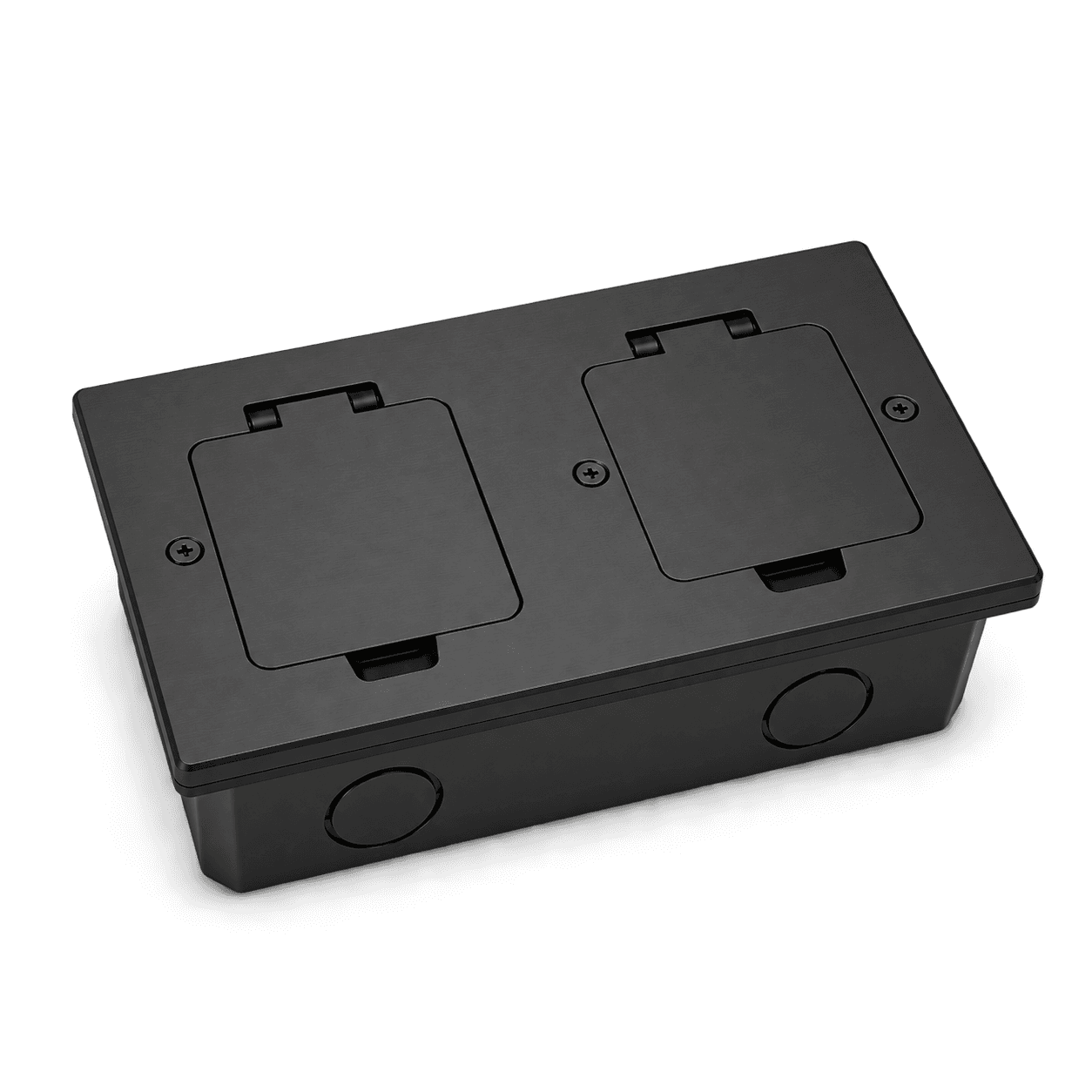

Matte black
SOP-12ZMA / SOP-12ZMC

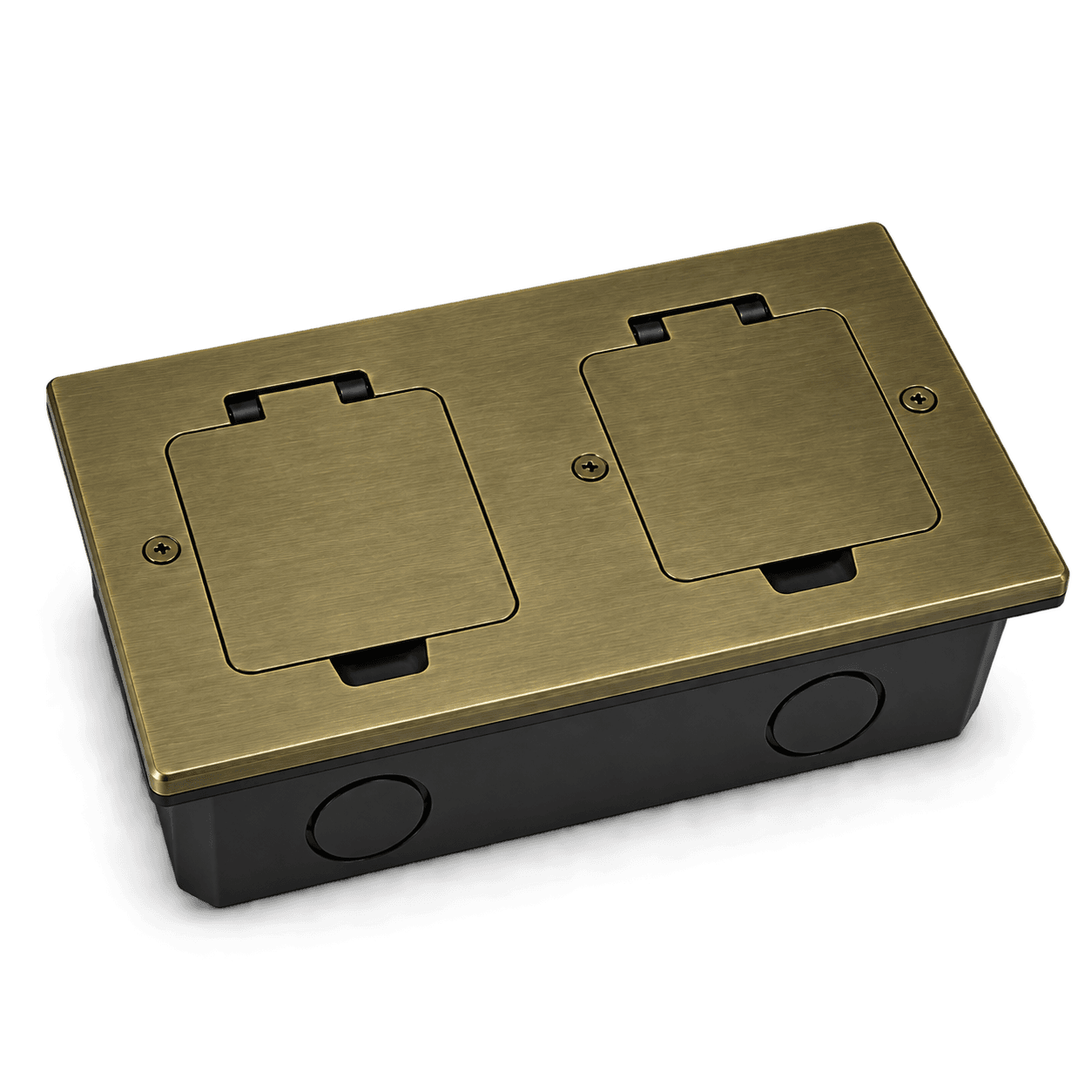

Old brass
SOP-12ZBA / SOP-12ZBC

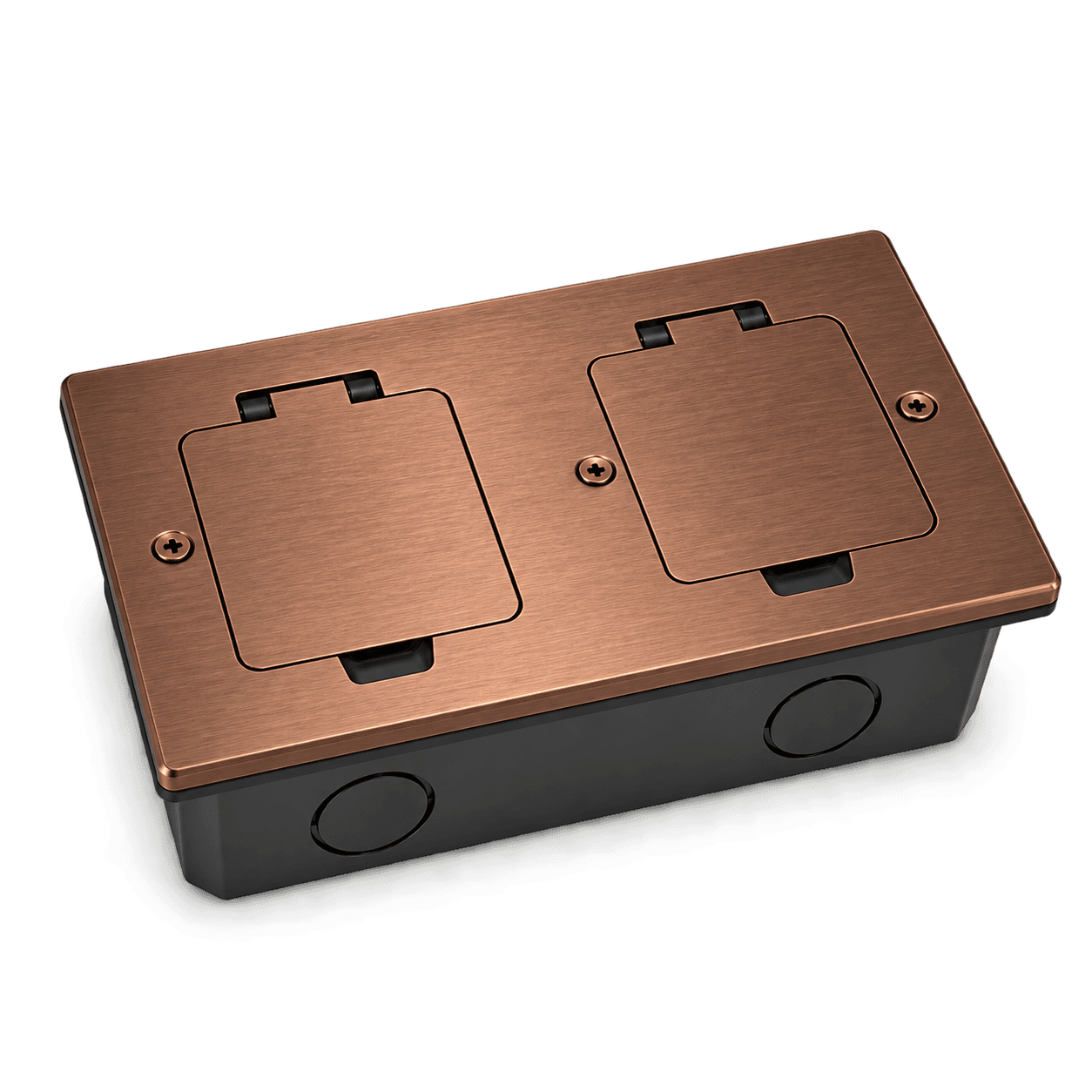

Red copper
SOP-12ZCA / SOP-12ZCC

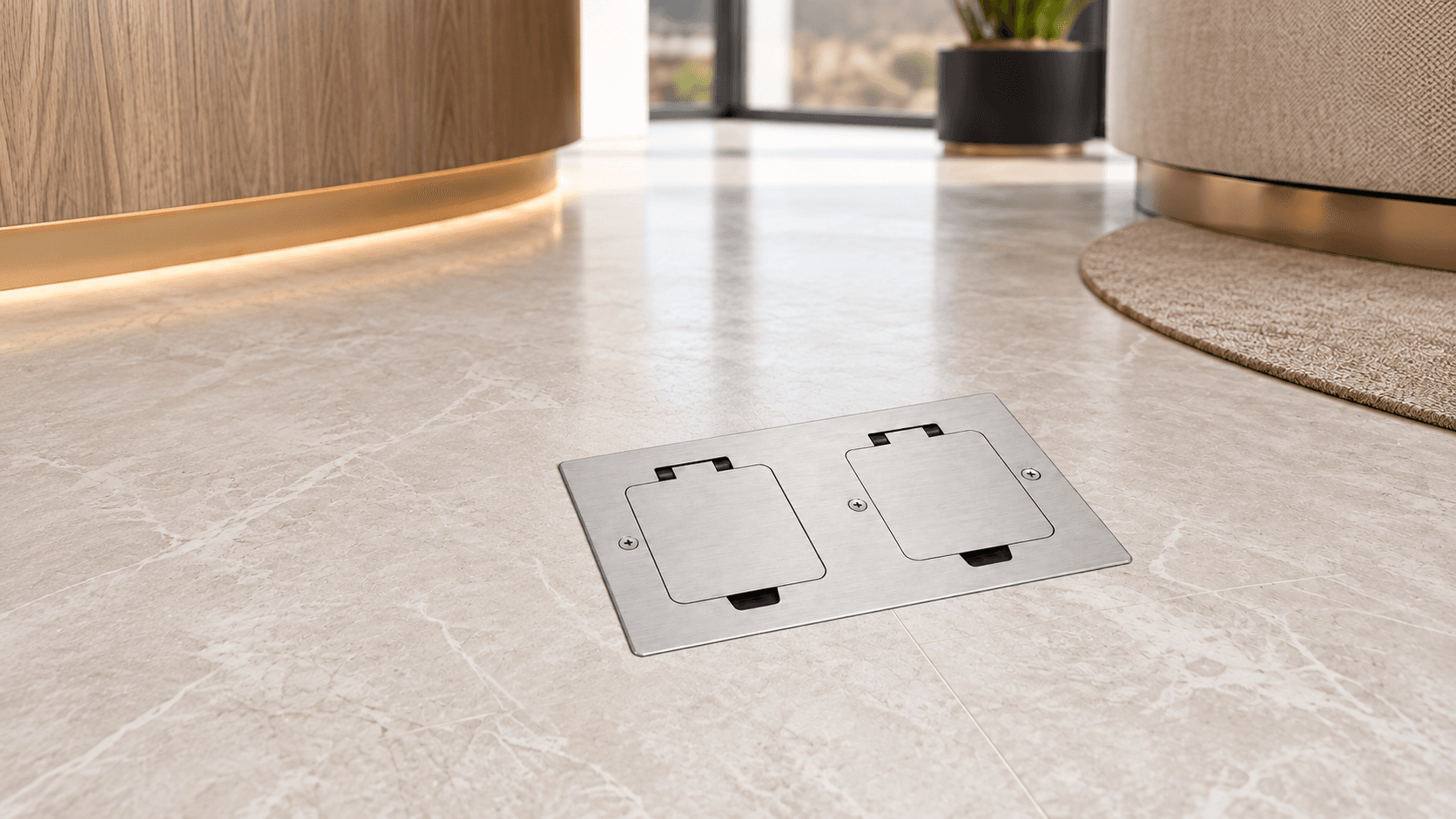

Project applications
Designed for practical floor access.
- Living rooms
- Office workstations
- Airport lounges
- Coffee shops
- Libraries
Technical specification
- Cover thickness
- 3.7 mm
- Module capacity
- 4 Type-45 series modules
- Cover panel
- Zinc alloy surface treatment
- Mounting box
- PC+ABS
- Raised-floor cut-out
- 165 × 80 mm
- Concrete-floor cut-out
- 178 × 92 mm
- Finishes
- Brushed nickel, metallic silver, red copper, old brass and matte black
Configuration and finishes
The details that affect selection.
Brushed nickelMetallic silverRed copperOld brassMatte black
Two independent covers
The SOP-12 has two flip-up socket positions in one floor point, allowing a coordinated power and data layout without adding a second box.
Four Type-45 module positions
The dual format accepts four Type-45 series modules. Confirm the required power and data configuration for the project before supply.
Floor preparation
The catalogue lists a 165 × 80 mm cut-out for raised access floors and a 178 × 92 mm cut-out for concrete floors.
Decorative finishes
Choose brushed nickel, metallic silver, red copper, old brass or matte black to coordinate with the surrounding floor finish.
Questions and answers
Product details, clearly answered.
How many modules can GH-SOP-12 hold?
It accepts four Type-45 series modules across its two flip-up socket positions.
Which floor cut-out is required?
The catalogue lists 165 by 80 mm for raised access floors and 178 by 92 mm for concrete floors.
Which finishes are available?
Brushed nickel, metallic silver, red copper, old brass and matte black are listed for the SOP-12 range.
