Brushed nickel
SOP-1ZNA / SOP-1ZNC
Green Home floor boxes
IP44 · IK09
GH-SOP-1 IP44 flip-up mini floor socket
A compact Type-45 flip-up floor socket with an IP44 and IK09 rated cover in the closed position, supplied in decorative finishes for flush floor installation.
Request datasheet
Available finishes
A finish to match the floor.
Choose from the supplied SOP-1 finish options. The finish is paired with the required square or round mounting base for the installation.

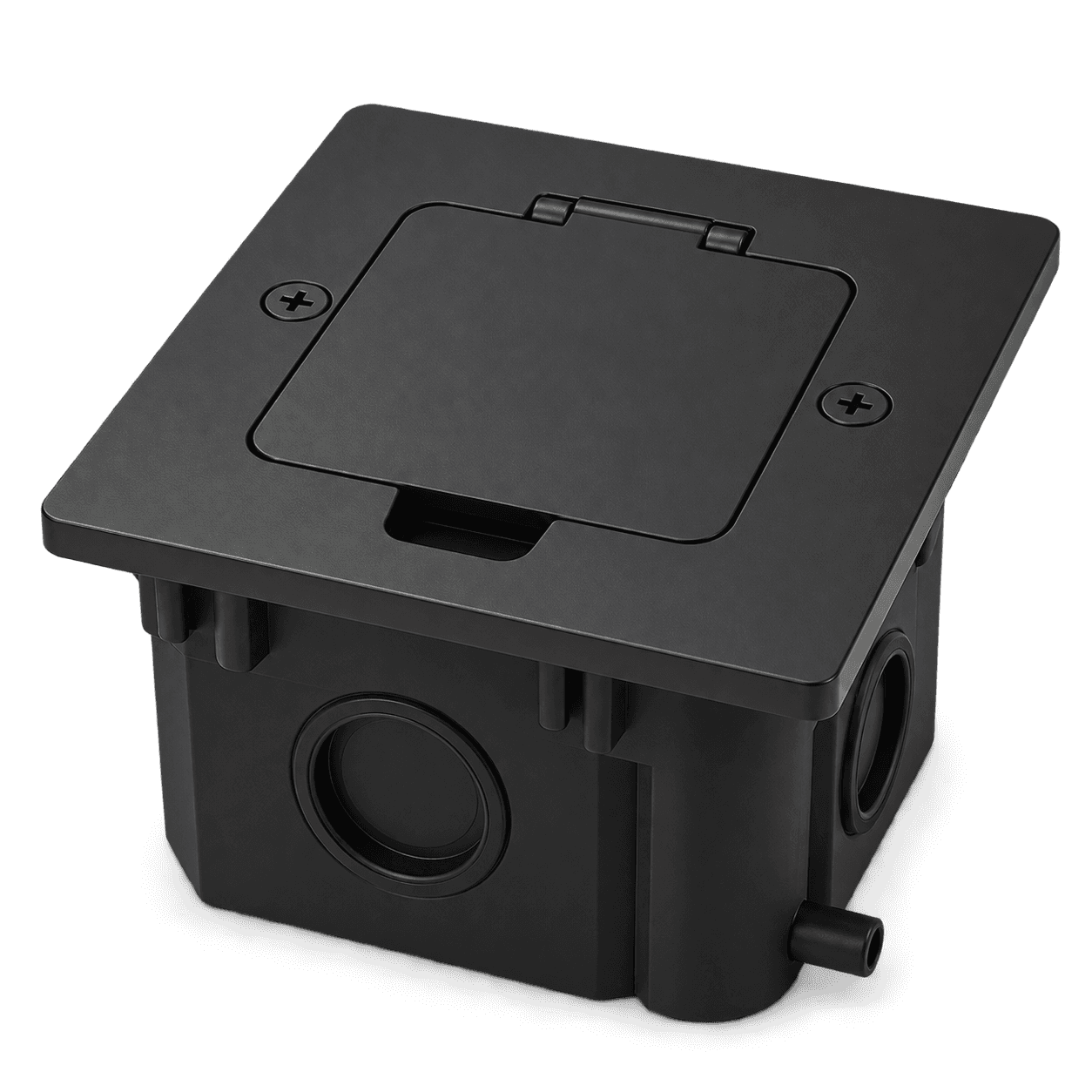

Matte black
SOP-1ZMBA / SOP-1ZMBC

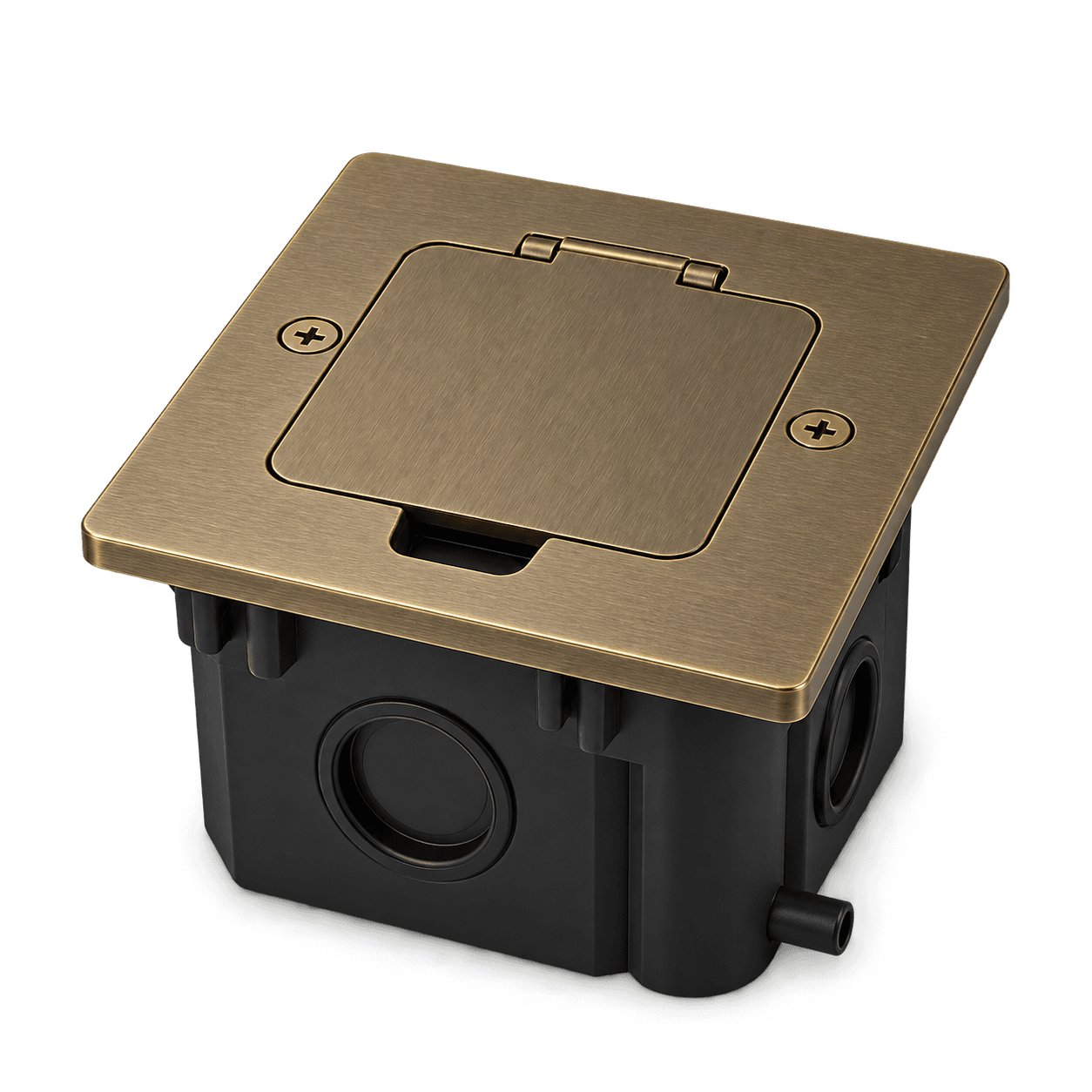

Old brass
SOP-1ZBA / SOP-1ZBC

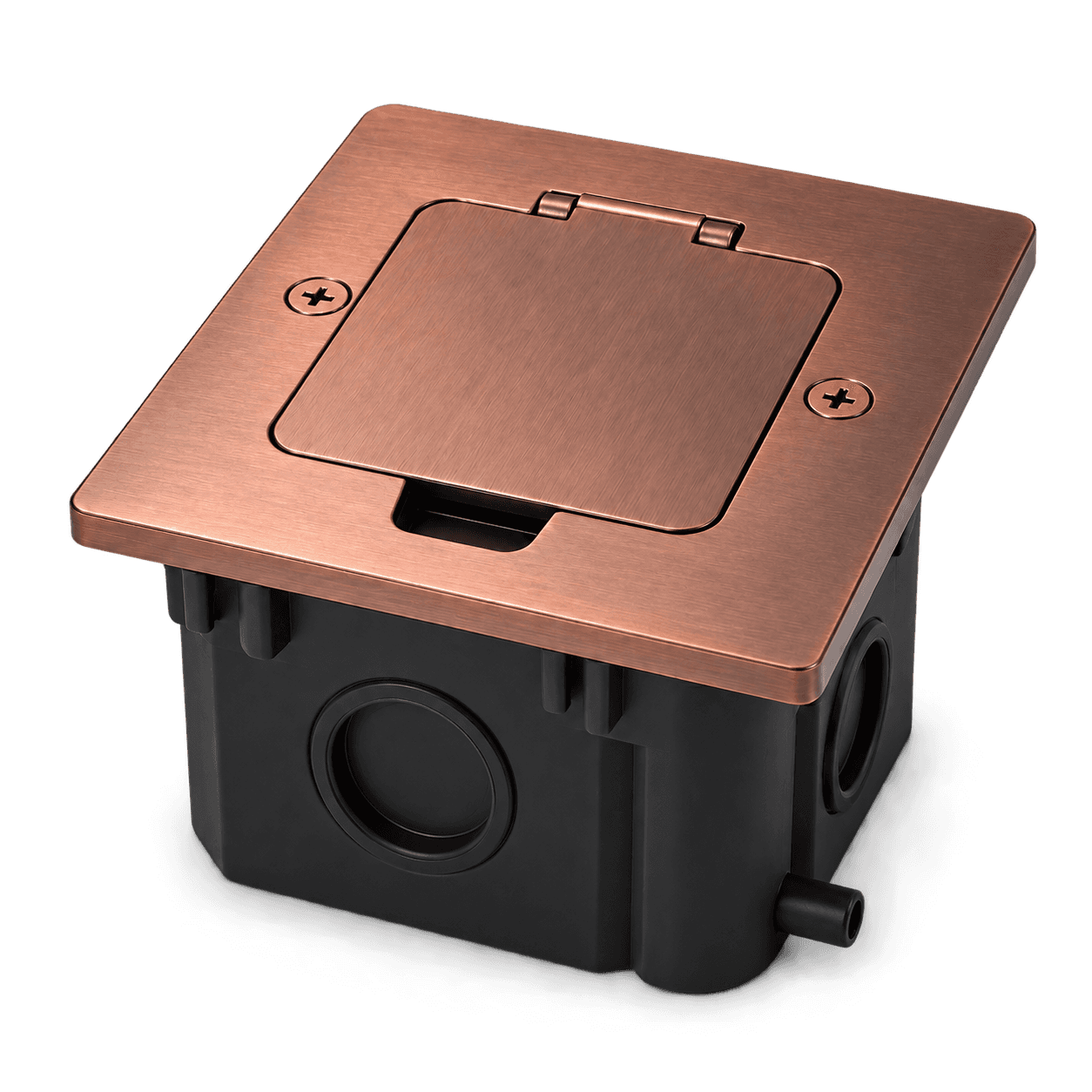

Red copper
SOP-1ZCA / SOP-1ZCC
Project applications
Designed for practical floor access.
- Office workstations
- Airport lounges
- Coffee shops
- Marble, stone and wood floors
Technical specification
- Protection
- IP44 in closed status
- Impact resistance
- IK09 in closed status
- Module compatibility
- Type-45 series modules
- Cover panel
- Zinc alloy
- Opening
- Up to 180°
- Mounting base
- Square base for concrete floors or round base for raised floors and walls
- Finishes
- Brushed nickel, metallic silver, red copper, old brass and matte black
- Operating temperature
- -10°C to +70°C
Configuration and finishes
The details that affect selection.
Brushed nickelMetallic silverRed copperOld brassMatte black

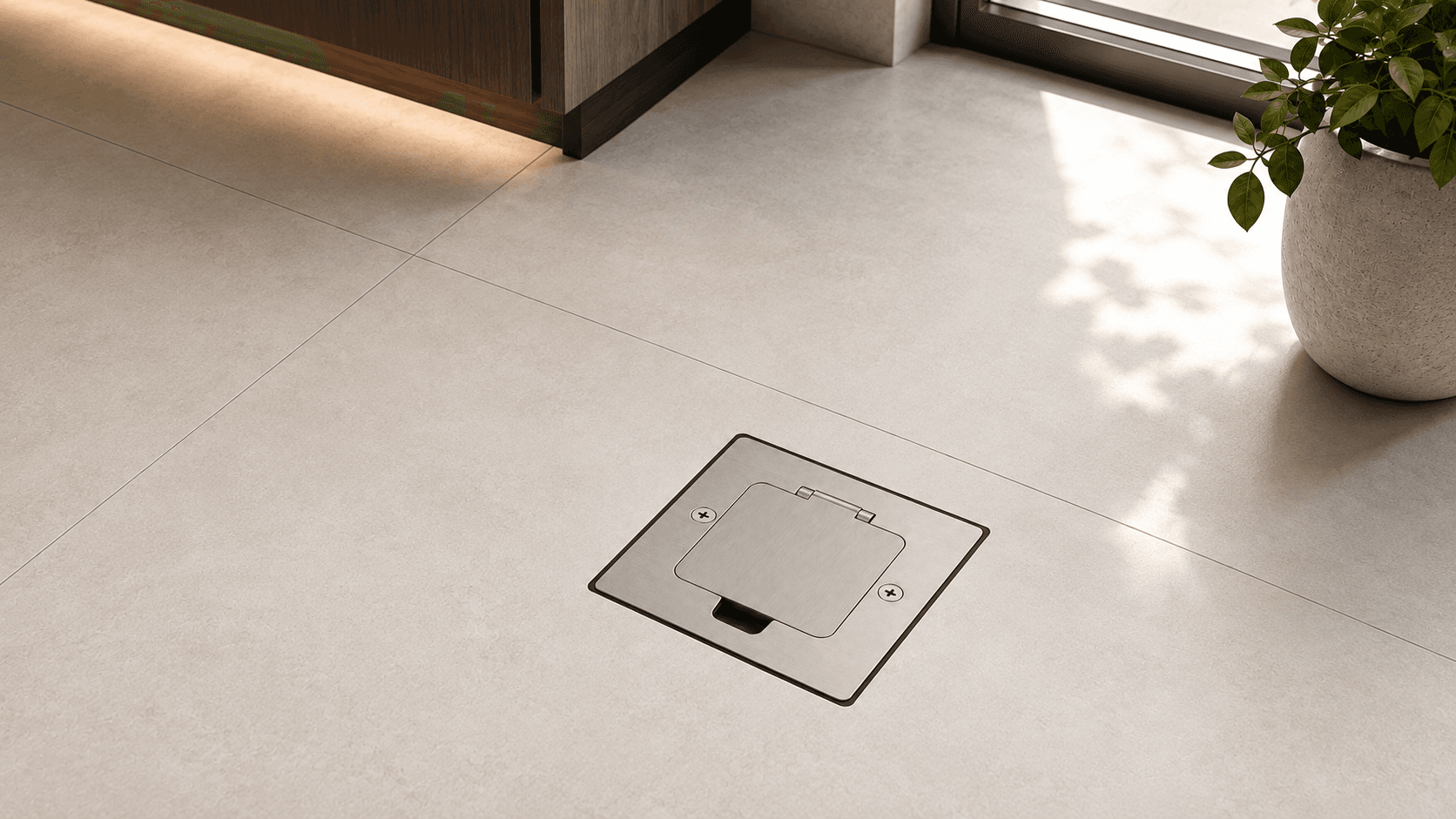

Flush floor finish
The supplied datasheet states that the cover panel sits flush with the mounting-base frame after installation is complete.
Installation base options
Use the square mounting base for concrete-floor installation, or the round mounting base for raised access floors and wall installation.
Connect adjacent units
The SOP-1 supports a push-click-connect arrangement for creating multiple-gang units in concrete floors.
Care
Clean without detergents, as specified in the supplied datasheet.
Questions and answers
Product details, clearly answered.
Which modules can be used with GH-SOP-1?
It is compatible with Type-45 series modules; confirm the required socket or data-module configuration for the project.
Can it be used with different floor constructions?
Use the square base for concrete floors and the round base for raised access floors or wall installation.
How far does the cover open?
The datasheet states an opening angle of up to 180 degrees.
