Burland In & Under Floor
Waterproof Floor Boxes
IP66 Grommet
Compact IP66 power grommet for wet-wash indoor areas when the lid is closed.
Product overview
IP66 Grommet
The IP66 Grommet is a compact floor power access point for indoor wet-wash areas. It is IP66 rated when the lid is closed and can be installed in raised or screed floors using the appropriate back box. A spring-loaded lid locks open to help prevent cable crushing, and lockable versions are available for public areas.
Best for
Wet-wash indoor zones, compact floor power points, public areas, and protected access details.
Colours and finishes
Stainless SteelBrass
Technical specification
Floor type

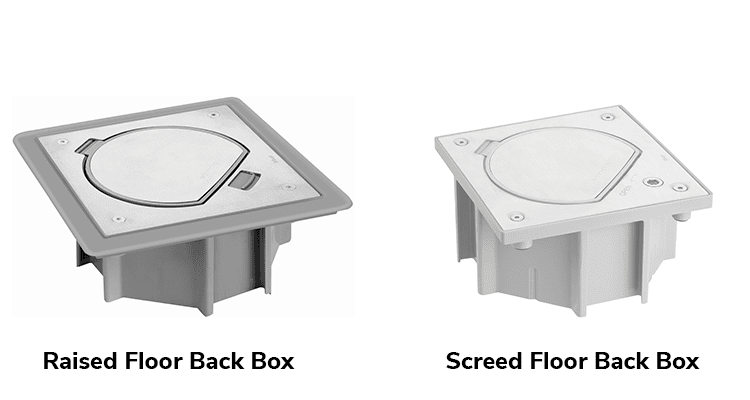

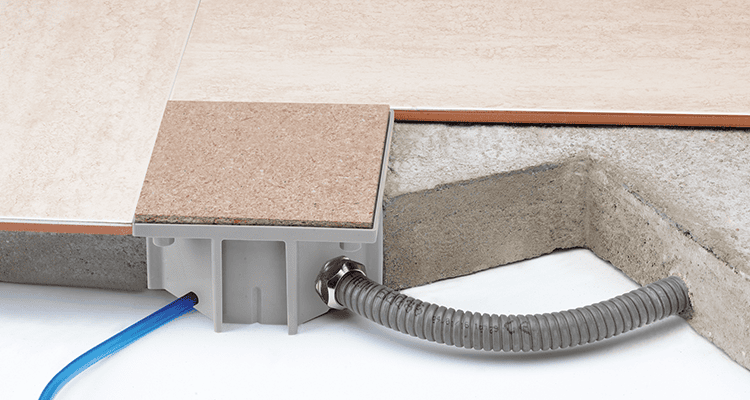

Raised floors or screed floors with matching back box
Protection
IP66 when lid is closed
Use condition
Indoor wet-wash areas
Socket direction
Designed around compact power access; socket types vary by configuration
Lid operation

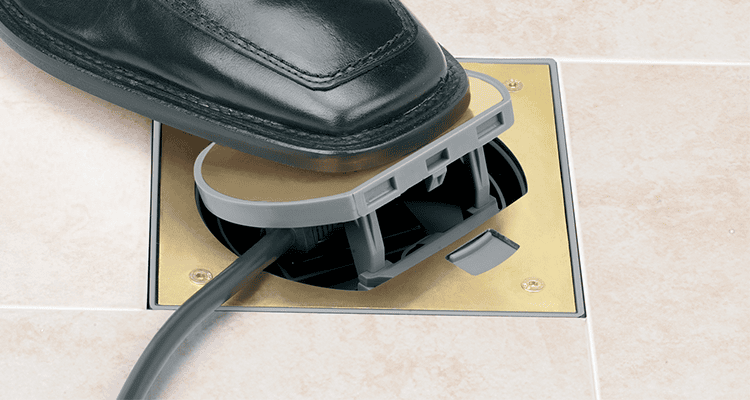

Spring-loaded lid locks open to reduce cable damage/crushing
Security
Lockable version available for public areas
IP66 when closedRaised or screed floorsLockable optionSpring-loaded lid
