IP67 Floor Box
IP67 floor box for controlled wet-cleaning environments when sealed with gasket and IP lid.
Product overview
IP67 Floor Box

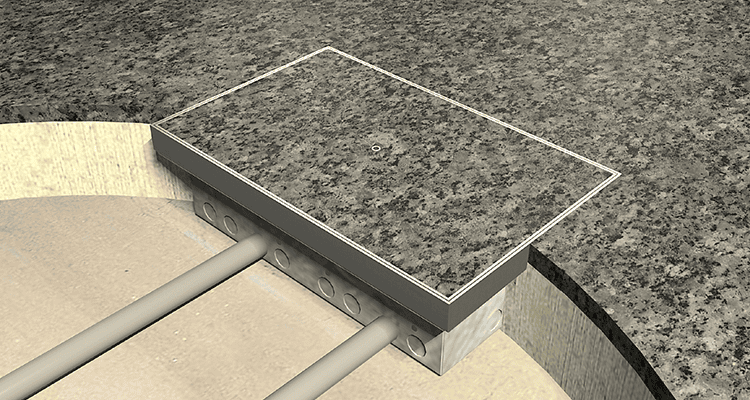

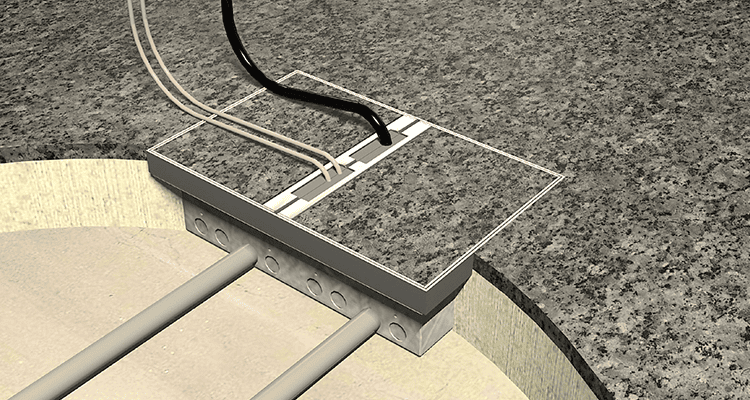

The IP67 Floor Box is designed for controlled water condition areas such as wet-wash floor environments. It is primarily used as a screed-mounted floor box and can also be used in cavity floors with additional fixing brackets. The box reaches IP67 only when the IP lid, gasket, and sealing plate are fitted; it is not IP67 rated while services are connected.
Best for
Malls, retail displays, lobbies, hard floors, controlled wet cleaning, and protected service points.
Colours and finishes
Stainless Steel
Technical specification
Floor type
Primarily screed floors; cavity floor use possible with additional fixing brackets
Protection
Certified IP67 when fully sealed with IP lid, gasket, and sealing plate
Important limitation
Not IP67 rated while services are connected
Knockouts
20 mm and 25 mm diameter knockouts
Main materials
2 mm metal lid with reinforcement and galvanised steel back box components
Segregation
Internal barrier for data/AV segregation
Certified IP67 sealed modeScreed mountingDay-time lid optionLow visual impact
