MK Honeywell Floor Boxes
Raised Floor Boxes
MK Cablelink Plus Single Pan Raised Floor Box
Single pan floor box for raised-floor environments with 1, 3, or 4 compartment options and deep wiring space.
Product overview

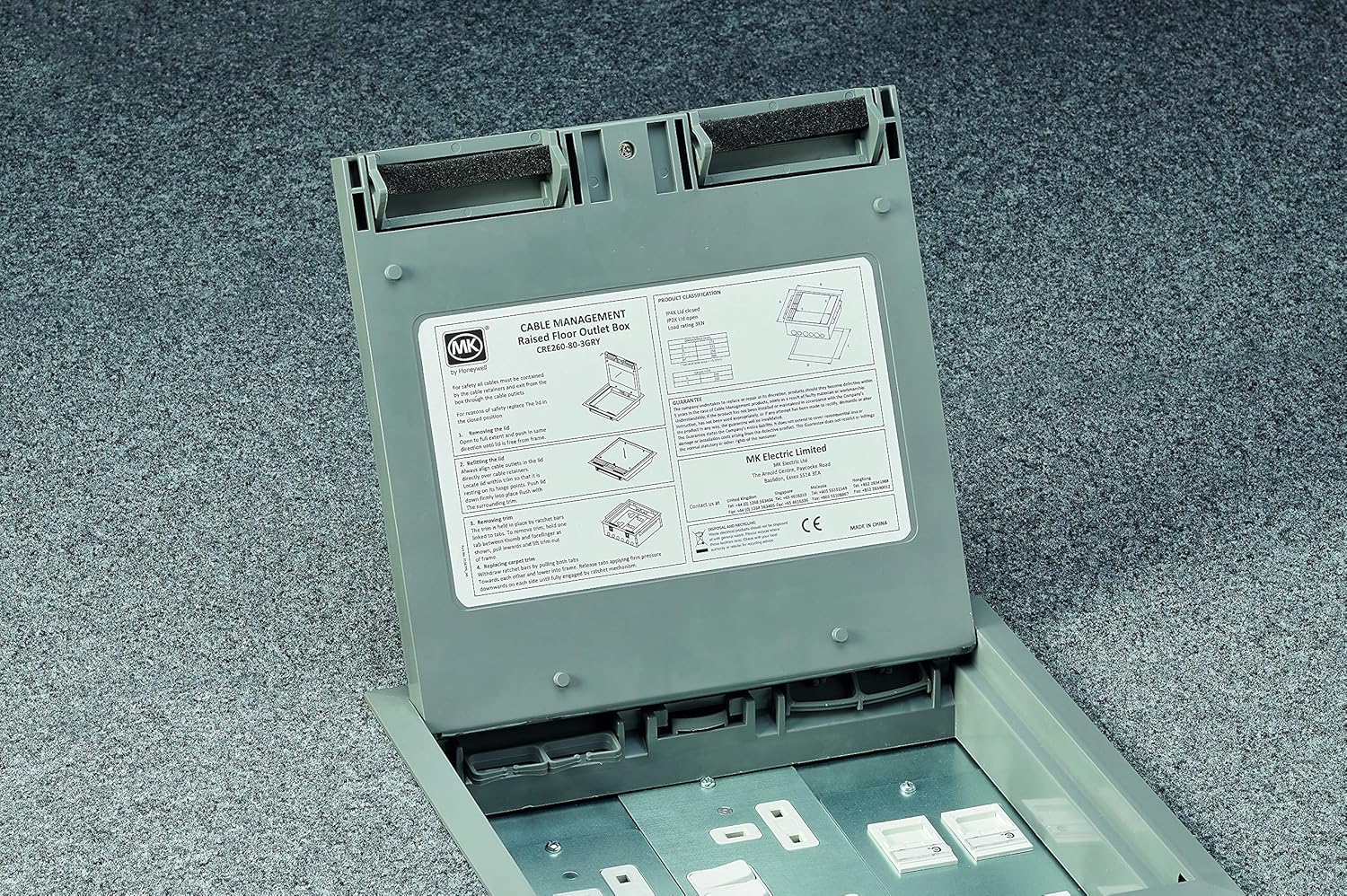

MK Cablelink Plus Single Pan Raised Floor Box
The MK Cablelink Plus Single Pan Box provides an interface between underfloor services and the office environment. It is intended for raised floor applications and supports power and data accessory plates, self-closing lids, reversible lid access, optional lockable lids, and 70 mm or 95 mm depth options. The 95 mm direction provides increased wiring space for Cat6/Cat7 requirements.
Best for
Commercial offices, education facilities, raised access floors, hot-desking areas, meeting rooms, and workstation zones.
Colours and finishes
Grey RAL 7011
Technical specification
Floor type
Raised floors
Protection
Indoor floor access; not for wet-wash locations unless the selected system/cover is rated for that condition
Compartments
1, 3, and 4 compartment options
Box sizes
100 x 200 mm, 265 x 265 mm, and 340 x 265 mm options
Depths
70 mm and 95 mm depth options
Wiring space
35 mm for 70 mm deep box; 45 mm for 95 mm deep box
Load rating
Tested to EN 50085-2-2 to accept 5000 N load
Standards
Supports BS EN 50085-1, EN 50085 Part 2-2, BS EN 60670-1, and BS EN 60670-23 references in datasheet
Raised floor use70 mm or 95 mm depth1, 3, or 4 compartments5000 N load rating
Questions and answers
MK Cablelink Plus Single Pan Raised Floor Box questions, clearly answered.
What floor construction is the MK Cablelink Plus Single Pan Box for?
The MK Cablelink Plus Single Pan Box is designed for raised access floor installations.
What depths are available for the MK Raised Floor Box?
The MK Cablelink Plus Single Pan Raised Floor Box is available in 70 mm and 95 mm depth directions. The 95 mm direction provides increased wiring space.
How many compartments can an MK Single Pan Raised Floor Box have?
The range includes 1, 3 and 4 compartment options, depending on the selected box size and arrangement.
